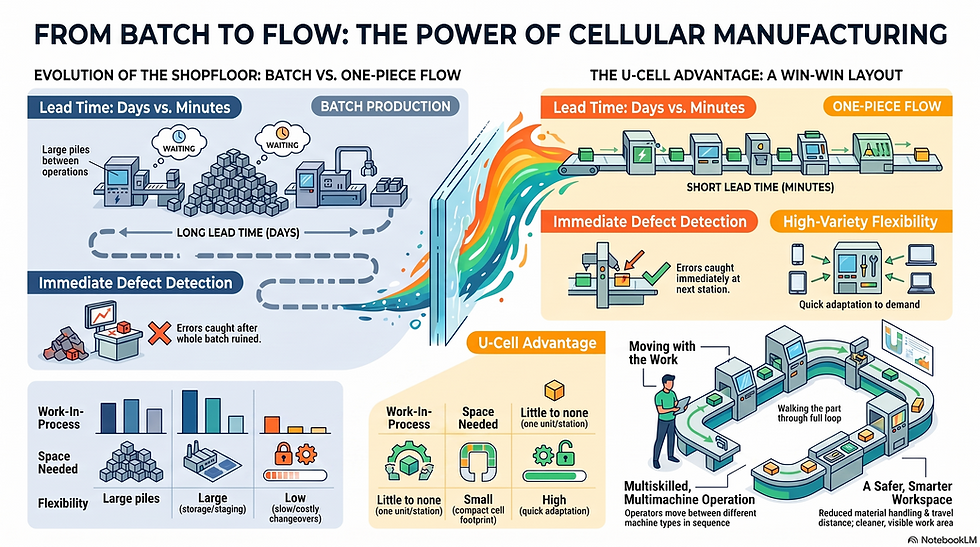

An infographic titled "From Batch to Flow: The Power of Cellular Manufacturing" comparing two distinct production environments.
The Batch Production section depicts a traditional, fragmented factory layout with long queues of units moving between isolated milling, drilling, and assembly departments, resulting in lead times measured in days, high work-in-process (WIP) levels, and low flexibility.
The Cellular Manufacturing section illustrates a modern, integrated environment featuring a U-shaped layout where stations form a loop to minimize operator travel. It shows multiskilled, mobile operators standing and managing multiple machine types, facilitating one-piece flow with minimal WIP and a compact footprint. Key findings noted include immediate defect detection and mutual gains in productivity for the company and safer, more varied work for staff. — The Cellular Manufacturing Revolution: A side-by-side comparison illustrating the physical and operational shift from traditional, function-based Batch Production to high-velocity, process-based One-Piece Flow using U-shaped layouts and multiskilled operators.

Allan Ung is the Founder and Principal Consultant of Operational Excellence Consulting (OEC), a Singapore-based management training and consulting firm established in 2009. With over 30 years of experience guiding factories through layout and flow transformation — including senior roles at IBM, Microsoft, and Underwriters Laboratories (UL) — Allan teaches cell design as a core module within his Lean Thinking and Value Stream Mapping workshops for manufacturing teams across Singapore and the region.

He holds a Bachelor of Engineering (Mechanical) from the National University of Singapore and completed advanced consultancy training in Japan as a Colombo Plan Scholar. Allan is a Certified Management Consultant (Japan), a Certified Lean Six Sigma Black Belt, and an accredited TPM Instructor.

Walk onto most factory floors and you can tell, within about thirty seconds, whether the layout was designed around the machine or around the part. The giveaway isn't the equipment. It's the forklifts.

A layout built around machine type puts every lathe in one bay, every mill in the next, every press after that. It looks tidy on an equipment list. It is, for the part actually being made, a scavenger hunt — cut here, truck it across the floor to be drilled, truck it again to be welded, truck it once more to be inspected. Every truck run is unpaid transport waste, every waiting pile between bays is unpaid inventory waste, and every one of those forklifts is a visible symptom of an invisible design flaw. This guide is about the alternative: arranging the floor around the part's actual journey, in a cell, so a person can walk it rather than truck it. This is the physical half of the Lean Production System covered in this cluster's hub article — where JIT establishes why flow matters, cellular manufacturing is the discipline of building it into concrete, floor-level reality.

Two floor-layout diagrams side by side. The left shows machines grouped by type (all lathes together, all mills together) with a part's travel path crossing itself repeatedly. The right shows the same machines arranged in the part's process sequence, with a single, short, direct travel path. — **Same five machines, same part, two completely different amounts of walking, waiting, and work-in-process — the layout on the right is the entire argument for cellular manufacturing in one picture.**

What a Cell Actually Changes

A manufacturing cell arranges equipment and workstations in the sequence a specific product or product family is made, tight enough that one or two cross-trained operators can walk a short, repeatable loop through it — cutting, forming, welding, inspecting, packing, one piece moving through each step in turn rather than large batches queuing between departments.

The shape of that loop follows the number of processes and the space available. A straight line suits two processes side by side. An L-shape lets an operator turn a corner between two stations. A U-shape — the most common cell shape in practice — brings the entry and exit close together so a single operator's start and end points sit almost side by side, and an S-shape compacts more processes into a tighter footprint. What every shape shares is the same design intent: keep the operator's input and output physically close, so no step in the loop requires unnecessary walking.

The result is not a cosmetic rearrangement. One-piece flow through a cell exposes problems the moment they happen — a defect is caught by the very next station, not discovered three weeks later in a warehouse. WIP has nowhere to accumulate because there is no batching between stations to accumulate in. And because operators cross-trained across the whole cell can flex in or out as demand rises and falls, the same physical cell can run with one operator on a quiet day and several on a busy one — a flexibility a fixed, department-based line simply doesn't have.

A U-shaped arrangement of workstations (cut, form, weld, assemble inspect, pack) with a single operator's walking path drawn as a loop from entry through all stations back to a nearby exit point. — Entry and exit sitting almost side by side is not an accident of geometry — it's the whole point of the U-shape, letting one cross-trained operator complete a full loop without a single wasted step back toward the start. Source: OEC Lean Thinking Training.

The Three-Phase Design Method: Understand, Convert, Improve

Converting a scattered, operation-based layout into a working cell is not a redraw-the-floor-plan exercise done in an afternoon. OEC teaches it as a disciplined three-phase method, and skipping straight to "moving the machines" — phase two — without doing phase one properly is the single most common reason a new cell underperforms.

Phase One: Understand. Before anything physically moves, the team needs an honest, data-based picture of what is actually being made and how. Two tools do the heavy lifting here.

PQ analysis (Product-Quantity analysis) sorts every part or product a facility makes by production volume, from highest to lowest, typically visualised as a Pareto chart. The purpose is to separate the small number of high-volume "runner" parts — the ones that justify a dedicated cell — from the long tail of low-volume "strangers," which are usually better served by a shared, flexible job-shop area rather than a dedicated cell of their own. Designing a cell for the wrong slice of the product mix is a fast way to build an expensive cell that sits half-idle.

Process route analysis then maps, for the runner products identified by PQ analysis, exactly which machines and operations each one visits and in what order. Laid out as a from-to matrix or a routing diagram, this exposes which products share a common sequence of operations — the products that share a route are candidates to share a single cell.

A Pareto chart with products listed along the horizontal axis in descending order of production volume, with bars showing individual volume and a cumulative-percentage line overlaid, illustrating a small number of high-volume products accounting for most of total output. — A handful of "runner" products usually account for the bulk of total volume — this is the chart that tells a team which products actually deserve a dedicated cell, and which are better left in a flexible shared area. Source: OEC Lean Thinking Training.

Phase Two: Convert. With the right product family and route identified, the team calculates takt time for that family — available production time divided by required daily output — and builds a process capacity table, listing every operation's manual time, machine time, and changeover time against that takt. Any operation whose cycle time exceeds takt time is an immediate bottleneck and must be addressed before the cell is built, not discovered after. From there the team drafts the physical cell — choosing a shape, positioning machines close enough for a short walk-path, and routing around any "monument": a large, costly, or immovable piece of equipment the cell must be designed around rather than through.

Phase Three: Improve. A converted layout is a starting point, not a finished product. The team evaluates the new cell against four elements — quality, cost, delivery, and safety — comparing before-and-after performance, then runs the cell for real and refines it: rebalancing work content, adjusting the walk-path, retraining where cross-skill gaps show up. Cell design is iterative by nature; the first version rarely survives contact with a real shift unchanged.

A table listing operation names down the left, with columns for manual time, machine time, and total cycle time per operation, and a horizontal reference line marking takt time, with any operation exceeding that line highlighted as a bottleneck. — Every operation's time laid out against a single number — takt time — turns "does this cell work?" from a guess into an arithmetic problem, and shows exactly which station will bottleneck the line before a single machine gets moved. Source: OEC Lean Thinking Training.

Multiskilled Operators and Standing While Working

A cell only delivers its flexibility if the people inside it can move. Multimachine and multiprocess operation — one cross-trained operator running several different machines in sequence, rather than one operator per machine — is what makes a cell's walk-path possible in the first place, and it is a significant behavioural shift for operators used to owning a single station.

Two changes tend to meet the most resistance and deserve deliberate change-management attention, not just a training slide. First, operators move from sitting to standing while working, because a seated operator cannot walk a multi-station loop.

Second, "my machine" becomes "my process" — the sense of ownership shifts from a single piece of equipment to an entire short sequence of steps, cutting, welding, inspecting in turn, rather than one repeated motion all day. Both changes are genuine gains for the operator once the cell is running well — more varied work, visible impact on quality and flow, and skills that are worth more on a résumé — but neither happens automatically just because the machines were physically moved.

The Teamwork Tools That Keep a Cell Running

A cell is a physical structure; keeping it running well is a discipline layered on top of that structure, and this is where 5S and visual management earn a genuinely deep treatment — more so than anywhere else in this cluster, because a cell concentrates several operators, several machines, and constant material movement into a small footprint where disorganisation is immediately visible and immediately costly.

Applied to a cell specifically, 5S is not a general tidiness exercise — it is about keeping tools, fixtures, and materials in a fixed, marked location so an operator moving through a multi-station loop never has to search, and about designing the workstation layout itself around the operator's walk-path rather than around convenience for whoever stocked the shelf. Visual management complements this with activity boards at the cell showing takt time, current output against target, and open problems, so anyone walking past — supervisor or operator — can read the cell's status in seconds rather than asking. Autonomous maintenance, one-point lessons posted at the point of use, and short daily huddles at the cell round out the discipline that keeps a converted layout from quietly drifting back toward the disorganisation it replaced.
